STAR-01K Electric Cylinder

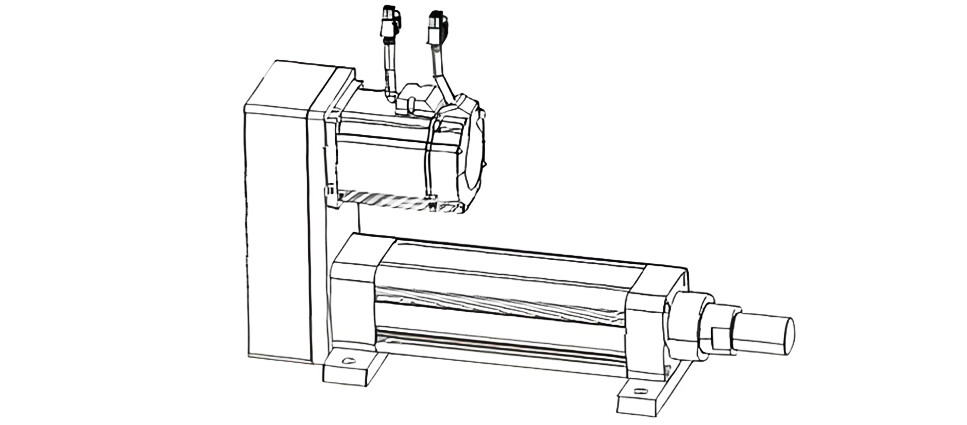

Folding type - Servo Electric Cylinder
Direct connection type - Servo Electric Cylinder
Tel：+86 15552899768
WhatsApp：+1 458 800 6424
Email：shineeastads@gmail.com
Message
Contact
Product Description


Push Rod Diameter（mm） 35
Screw Diameter（mm） 16
Screw Lead（mm） 5/10/20
Max Thrust（kN） 6
Max Stroke（mm） 500
Max Speed（mm/s） 1000


Electric Cylinder Type
STAR01K-L100-10-E-F1K1R-SN3
Electric cylinder seriesThrust (Kgf)
Stroke (mm)
Lead (mm)
Electric cylinder style
Electric cylinder installation formLoad connection methodPush rod anti-rotation design
sensor






E: Direct connection
F1: Bottom threadK1: External threadR: With stop
SO3: Three PNP normally open






F: Foldback
F2: Side flangeK2: Internal threadNone: No stop
SC3: Three NPN normally closed






L: Corner
F3: front flangeK3: U-shaped latch










F4: Tail flangeK4: Fisheye ball bearing










F5: Tail pinK: Customized










Fx:Customized




STAR-01K Electric Cylinder Servo Motor Configuration Parameters：

Servo Motor Power：750W

Screw Leadmm51025
Reduction Ratio
135102050135102050135102050
Servo Motor PowerW750750750
Servo Motor Rated TorqueN.M2.392.392.39
Servo Motor Rated Speedr/min300030003000
Electric Cylinder Rated ThrustKN2.76101.346.5100.51.62.75.410
Electric Cylinder Max ThrustKN2.78.113.527541351.346.713.52767.50.51.62.75.410.827
Electric Cylinder Max Speedmm/s25083502512.55500166100502510125041625012562.525


Servo Motor Power：1KW

Screw Leadmm51025
Reduction Ratio
135102050135102050135102050
Servo Motor PowerW1KW1KW1KW
Servo Motor Rated TorqueN.M3.183.183.18
Servo Motor Rated Speedr/min300030003000
Electric Cylinder Rated ThrustKN3.567.5101.75.38.5100.723.56.88.510
Electric Cylinder Max ThrustKN3.510.717.935.971.81791.75.38.917.935.989.80.72.13.57.114.335.9
Electric Cylinder Max Speedmm/s25083502512.55500166100502510125041625012562.525


Servo Motor Power：1.5KW

Screw Leadmm51025
Reduction Ratio
135102050135102050135102050
Servo Motor PowerW1.5KW1.5KW1.5KW
Servo Motor Rated TorqueN.M4.774.774.77
Servo Motor Rated Speedr/min300030003000
Electric Cylinder Rated ThrustKN3.567.5101.75.38.5100.723.56.88.510
Electric Cylinder Max ThrustKN3.510.717.935.971.81791.75.38.917.935.989.80.72.13.57.114.335.9
Electric Cylinder Max Speedmm/s25083502512.55500166100502510125041625012562.525
