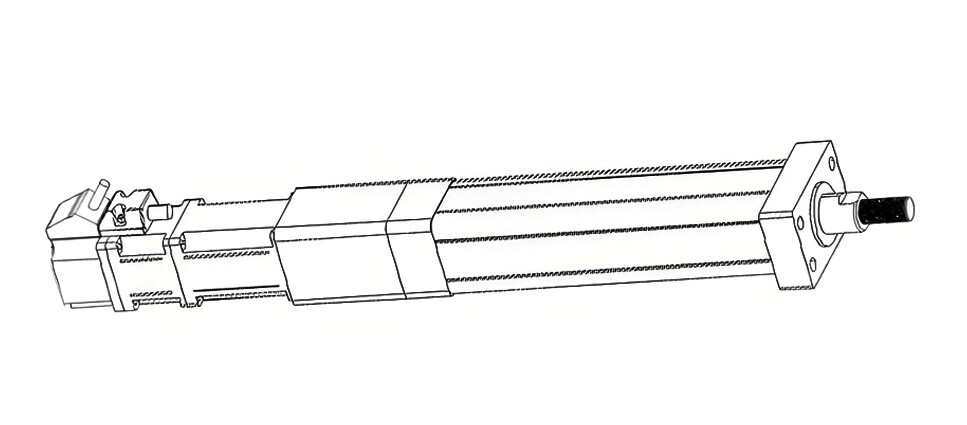

STAR-035 Electric Cylinder
Folding type - Servo Electric Cylinder
Direct connection type - Servo Electric Cylinder
Tel：+86 15552899768
WhatsApp：+1 458 800 6424
Email：shineeastads@gmail.com
Message
Contact
Product Description


Push Rod Diameter（mm） 20
Screw Diameter（mm） 12
Screw Lead（mm） 5/10
Max Thrust（kN） 0.35
Max Stroke（mm） 300
Max Speed（mm/s） 500


Electric Cylinder Type
STAR050-L100-10-E-F1K1R-SN3
Electric cylinder seriesThrust (Kgf)
Stroke (mm)
Lead (mm)
Electric cylinder style
Electric cylinder installation formLoad connection methodPush rod anti-rotation design
sensor






E: Direct connection
F1: Bottom threadK1: External threadR: With stop
SO3: Three PNP normally open






F: Foldback
F2: Side flangeK2: Internal threadNone: No stop
SC3: Three NPN normally closed






L: Corner
F3: front flangeK3: U-shaped latch










F4: Tail flangeK4: Fisheye ball bearing










F5: Tail pinK: Customized










Fx:Customized




STAR-035 Electric Cylinder Servo Motor Configuration Parameters：

Servo Motor Power：100W

Screw Leadmm510
Reduction Ratio
135102050135102050
Servo Motor PowerW100100
Servo Motor Rated TorqueN.M0.320.32
Servo Motor Rated Speedr/min30003000
Electric Cylinder Rated ThrustKN0.350.150.35
Electric Cylinder Max ThrustKN0.3611.83.67.2180.180.540.91.83.69
Electric Cylinder Max Speedmm/s50083502512.55500166100502510


Servo Motor Power：200W

Screw Leadmm510
Reduction Ratio
135102050135102050
Servo Motor PowerW200200
Servo Motor Rated TorqueN.M0.640.64
Servo Motor Rated Speedr/min30003000
Electric Cylinder Rated ThrustKN0.350.35
Electric Cylinder Max ThrustKN0.722.23.67.214360.3611.83.67.218
Electric Cylinder Max Speedmm/s50083502512.55500166100502510
