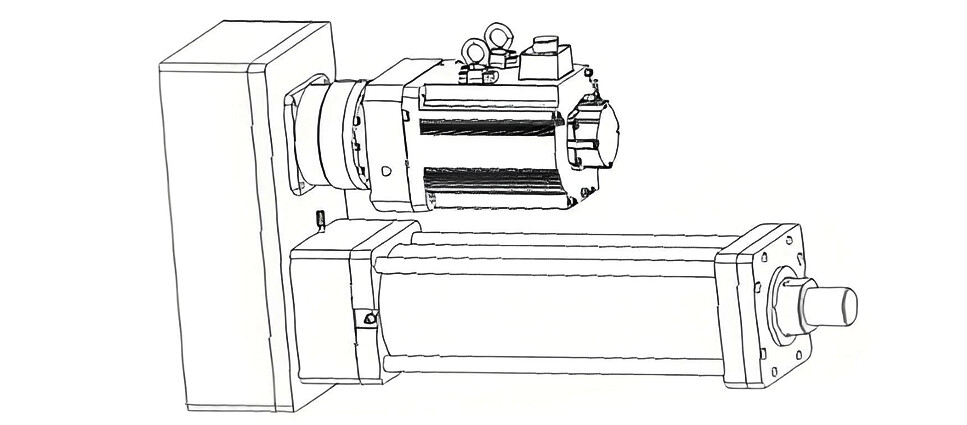

STAR-30K Electric Cylinder
Folding type - Servo Electric Cylinder
Direct connection type - Servo Electric Cylinder
Tel：+86 15552899768
WhatsApp：+1 458 800 6424
Email：shineeastads@gmail.com
Message
Contact
Product Description


Push Rod Diameter（mm） 150
Screw Diameter（mm） 80
Screw Lead（mm） 10/20
Max Thrust（kN） 380
Max Stroke（mm） 2000
Max Speed（mm/s） 500


Electric Cylinder Type
STAR30K-L100-10-E-F1K1R-SN3
Electric cylinder seriesThrust (Kgf)
Stroke (mm)
Lead (mm)
Electric cylinder style
Electric cylinder installation formLoad connection methodPush rod anti-rotation design
sensor






E: Direct connection
F1: Bottom threadK1: External threadR: With stop
SO3: Three PNP normally open






F: Foldback
F2: Side flangeK2: Internal threadNone: No stop
SC3: Three NPN normally closed






L: Corner
F3: front flangeK3: U-shaped latch










F4: Tail flangeK4: Fisheye ball bearing










F5: Tail pinK: Customized










Fx:Customized




STAR-30K Electric Cylinder Servo Motor Configuration Parameters

Servo Motor Power：11KW

Screw Leadmm20
Reduction Ratio
135102050
Servo Motor PowerW11KW
Servo Motor Rated TorqueN.M70
Servo Motor Rated Speedr/min1500
Electric Cylinder Rated ThrustKN185085170280380
Electric Cylinder Max ThrustKN185693186373934
Electric Cylinder Max Speedmm/s500166100502510


Servo Motor Power：15KW

Screw Leadmm20
Reduction Ratio
135102050
Servo Motor PowerW15KW
Servo Motor Rated TorqueN.M96
Servo Motor Rated Speedr/min1500
Electric Cylinder Rated ThrustKN2570120220280380
Electric Cylinder Max ThrustKN25771282565121281
Electric Cylinder Max Speedmm/s500166100502510
